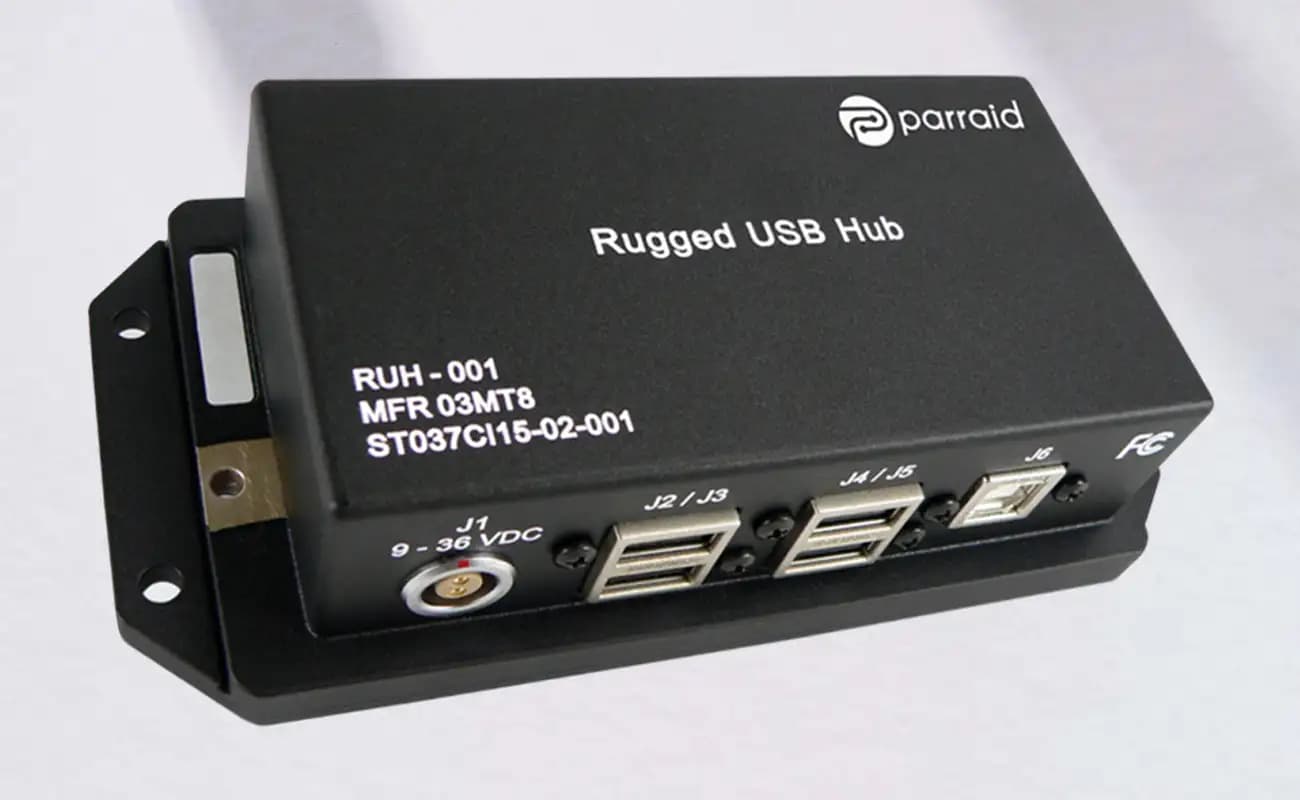

Rugged USB 2.0 Hub

The Parraid Rugged USB Hub 2.0 is the first USB hub designed to meet a full range of environmental requirements for mobile and deployed systems. It has been tested to MIL-STD-810F for shock, vibration, temperature, sand and dust. The RUH 2.0 has also been tested to MIL-STD-461E for conducted and radiated emissions and susceptibility. With the ability to be mounted and deployed in a number of environments, the Rugged USB Hub is one of the most versatile rugged peripherals in your IT arsenal.

• Environmentally sealed USB, serial, and power ports
• 4 powered high speed USB 2.0 ports
  • Up to 480 Mbps
  • Up to 500 mA
• 2 x RS232 serial ports for legacy and serial devices
  • Point-to-point communication
  • 50ft.
  • 20Kb/s
• 1 x RS422 serial port  for greater distances and higher Baud rates than RS232
  • Point-to-multipoint communication
  • Up to 10 Receivers
  • 4000ft.
  • 100Kb/s
• 9-36 VDC power input
• Less than 2 lbs. total weight

• Method 501.4 High Temperature
  • Procedure I – Storage, 85 °C
  • Procedure II – Operation, 49 °C
• Method 502.4 Low Temperature
  • Procedure I – Storage, -58 °C
  • Procedure II – Operation. -55 °C
• Method 503.4 Temperature Shock
  • Procedure I – Steady State, 85 °C to -57 °C
• Method 516.5 Shock
  • Procedure I – Functional Shock, 40 g’s in 11 ms
  • Procedure V – Crash Hazard, 75 g’s in 6 ms
  • Procedure VI – Bench Handling, 4″​ drop on wooden surface
• Method 510.4 Sand and Dust
  • Procedure I – Blowing Dust, 2kg/m3 of dust in a 1 m3 chamber for 8 hours
• Method 514.5 Vibration
  • Procedure I – General Vibration
  • Category 4 – Truck/Trailer/Tracked – Restrained Cargo
• 0.01 g2/Hz to 500 Hz, -6dB/oct to 2000 Hz
  • Category 20 – Ground Vehicles – Ground Mobile, 5 Hz to 500 Hz
