The X-5000/X-5000i4 is a high-performance multi-band variable rate receiver and/or PCM bit-sync and decommutation device.

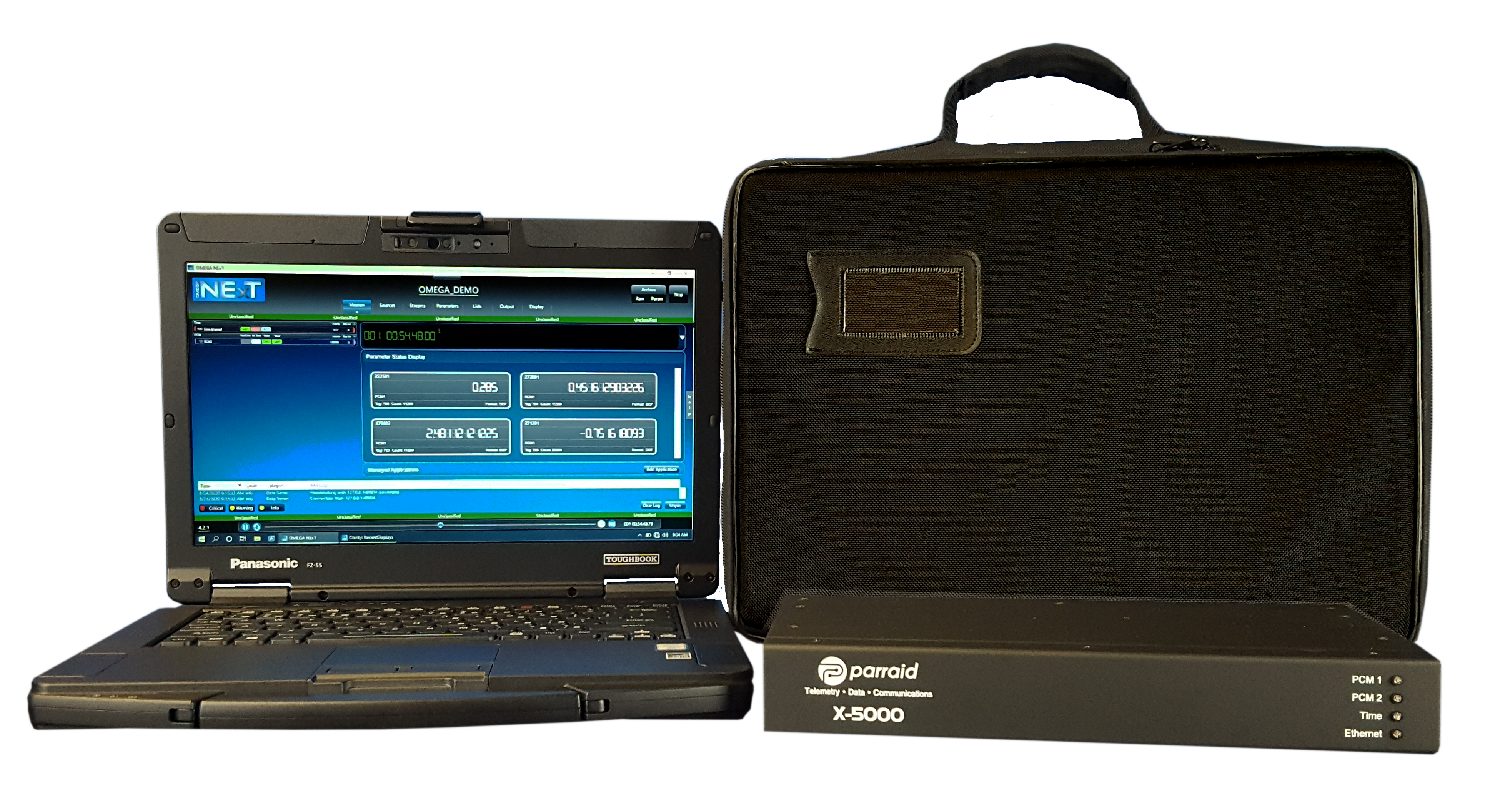

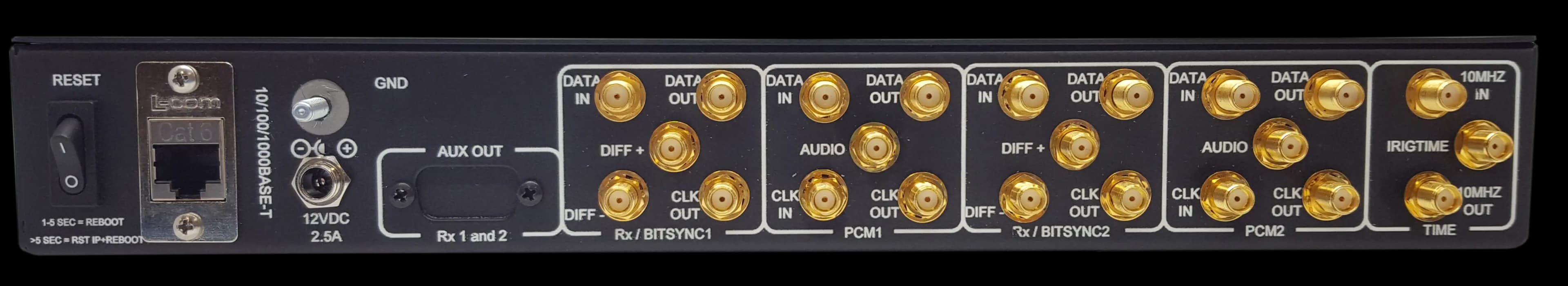

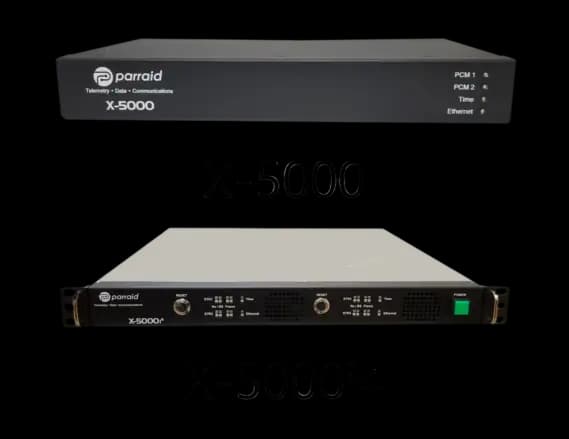

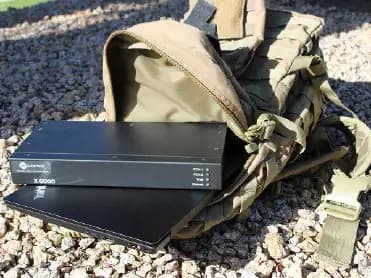

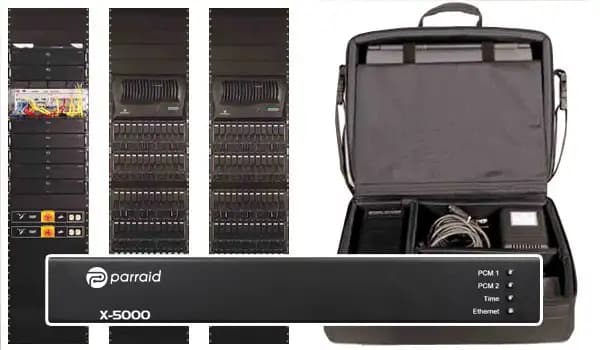

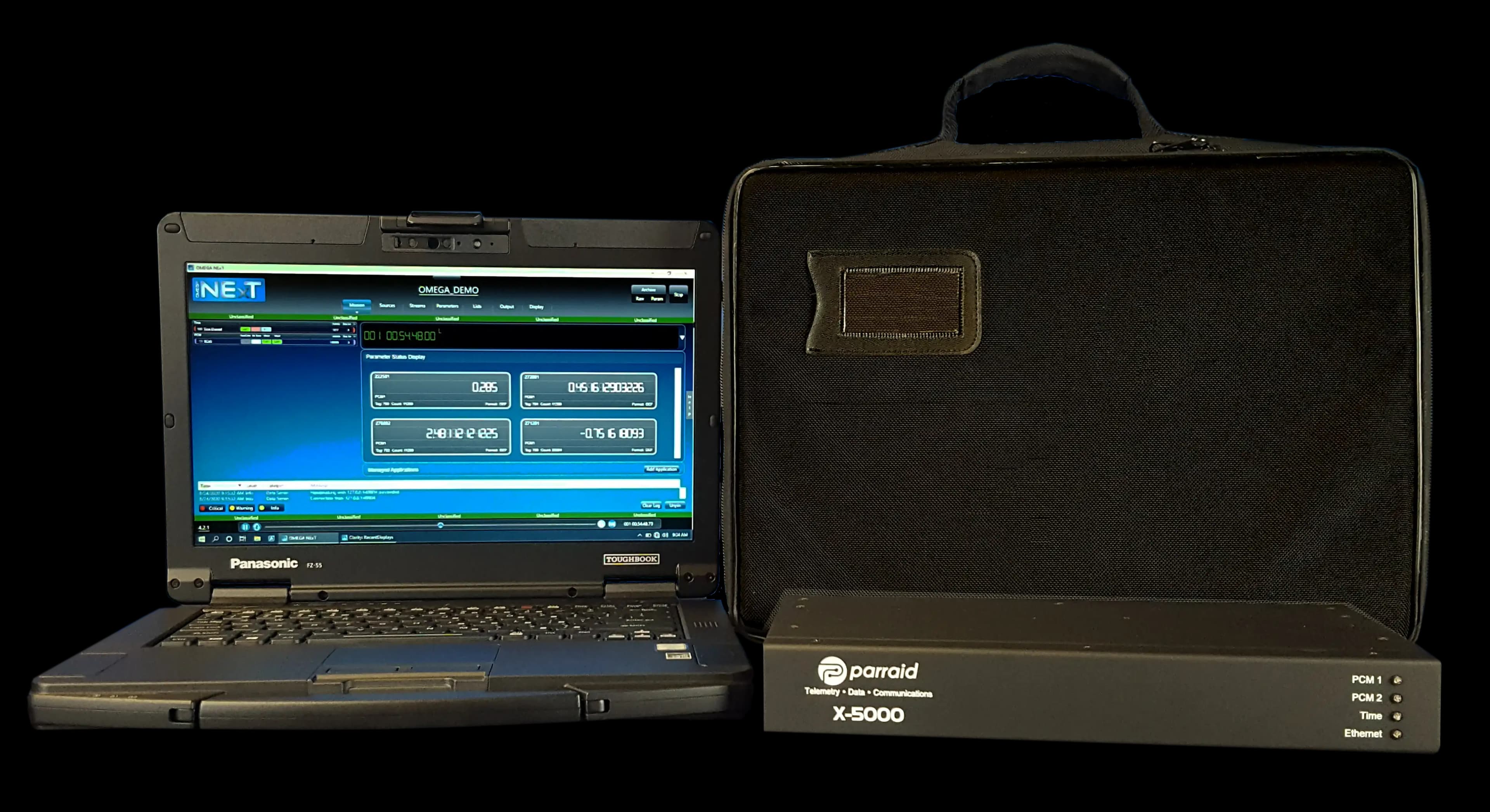

Parraid’s high performance multi-band telemetry receiver-decom is designed for comprehensive portable ground station data processing. X-5000 may be carried in a bag with a lap-top computer or mounted in a 19” portable or fixed equipment rack. It supports two simultaneous L/S/C Band telemetry signal inputs along with IRIG A, B, and G, modulated time code carrier input. It includes “hot mic” audio signal output for each PCM stream, and industry-standard Chapter 10 data packet output, configurable for TCP/IP and UDP, over a standard 1G Ethernet port provided with industry-standard RJ 45 connection. Two-stream decommutation may be programmed for any IRIG Chapter 4, Chapter 7, and Chapter 8, signal type. When used in conjunction with the OMEGA NExT data processing software operators can process the most complex PCM-embedded formats. Multiple X-5000 systems can be synchronized together with an external 10 MHz clock and Ethernet hub in order to provide more PCM streams to the host computer for processing and display. The X-5000/X-5000i4 and OMEGA NExT offer instrumentation and telemetry engineers an ideal solution for portable real-time telemetry data applications.
