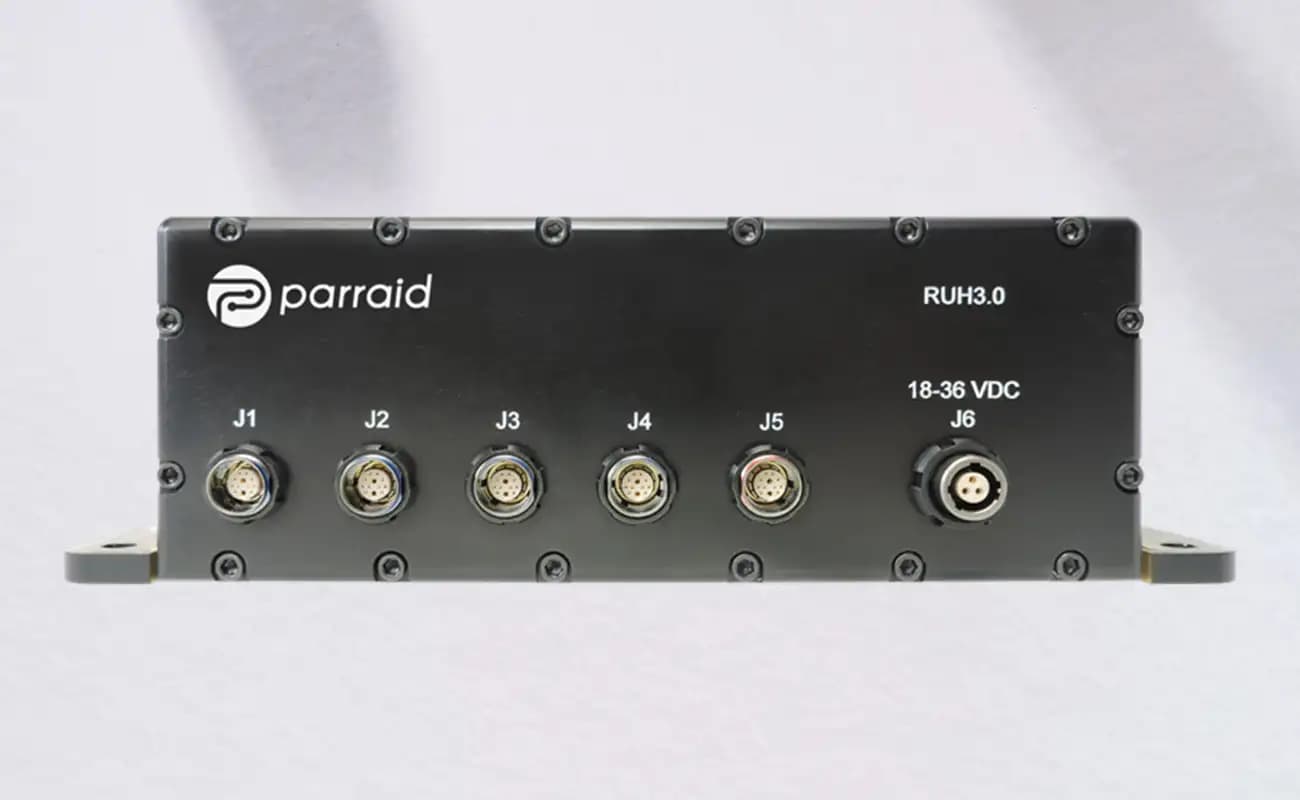

Rugged USB 3.0 Hub

The Parraid Rugged USB Hub 3.0 is the toughest four port hub on the market. Designed from the ground-up for the most extreme operating environments encountered by modern advanced mobile IT systems, the Rugged USB Hub 3.0 is certified to MIL-STD-810 for temperature, vibration, and pyroshock; MIL-STD-461 for emissions and susceptibility. The sturdy and dependable RUH 3.0 is the strongest way to interconnect your deployable systems and is fast and reliable under the harshest conditions.
Don’t let your USB hub be the weakest link in your fielded IT equipment!

Specifications

• Dimensions: 7.52″ x 2.37″ x 1.8″
• Weight: 1.22 lbs.
• Finish: Black anodize (MIL-A-8625, Type II)
• Ports: (4) Downstream USB ports, (1) Upstream USB port, and (1) Power
• Power Cable Connector: ODU S10YAR-P03XJG0-0000
• Upstream Cable Connector: ODU A10WBM-P12XMM0
• Downstream Cable Connector: ODU A10WCM-P12XMM0
• Port Speed: Super, high, full, or low-speed device connections and super or high-speed host connection

Power

• Power Source: Self-powered with external supply
• Consumption: 19 watts with full power to all downstream devices
• Self-Power Input Voltage: 18-36 VDC @ 1A
• Output (Downstream): 5VDC at 900mA per port with overcurrent protection

Environmental

• Operating Temperature: Minimum -40°C to Maximum +70°C
• Storage Temperature: Minimum -55°C to Maximum +85°C
• Cooling: Conduction/convection via case
• Addition Certifications: Vibration and pyroshock
• EMC/EMI Certifications: Emissions and susceptability
• USB Certification: USB 3.1 Gen 1 SuperSpeed 5Gb/sec and USB 2.0

• Slim, durable design
• Retentive connectors
• Heavy-duty military connectors prevent accidental disconnection
• Withstands extreme temperatures
• Withstands extreme shock
• Electromagnetically shielded
• Built-in mount points
• Port overcurrent protection
• Four powered SuperSpeed USB 3.0 Ports
  – High-speed data transfers up to 5Gbps
  – Up to 900 mA per downstream port
  – Fully backwards compatible with USB predecessors
• Can cascade multiple hubs, enabling many devices
• Operates with Microsoft Windows, Apple  Macintosh OS, Linux, and other USB-capable operating systems
